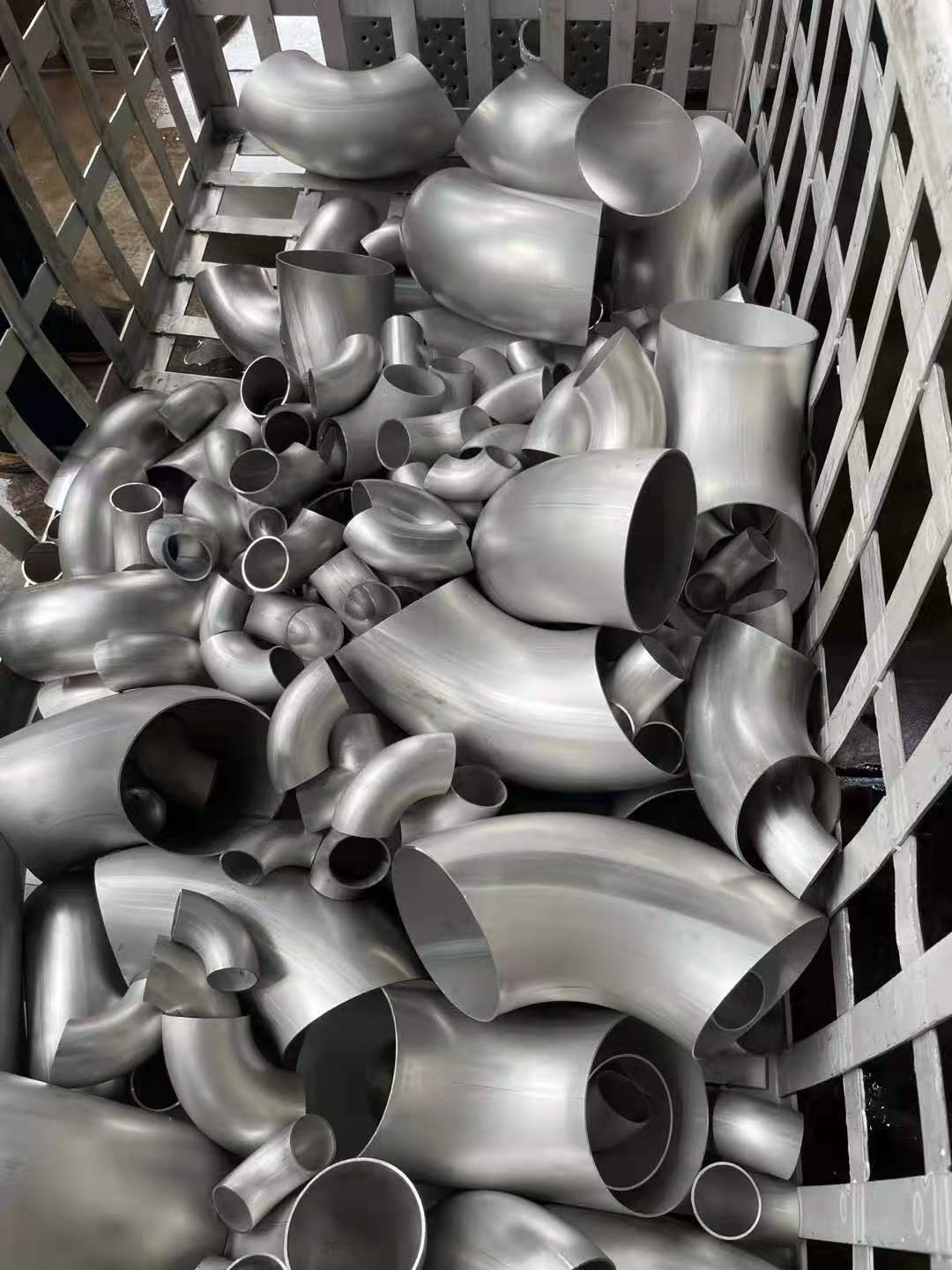

Product Overview
316L Stainless Steel Elbows are premium-grade pipe fittings designed for changing pipeline direction in demanding industrial systems. Manufactured from high-quality 316L stainless steel (UNS S31603 / EN 1.4404), these elbows feature superior corrosion resistance, excellent mechanical strength, and outstanding weldability — making them the preferred choice for marine, pharmaceutical, chemical, and food-processing industries.
Also known as SS 316L Elbow, AISI 316L Elbow, 316L Pipe Elbow, Marine-Grade Stainless Elbow, or Low-Carbon 316 Elbow, our 316L elbows are engineered to deliver reliable performance in chloride-rich and highly corrosive environments where standard grades like 304 would fail prematurely.
The “L” designation indicates low carbon content (≤ 0.03%), providing exceptional resistance to intergranular corrosion (sensitization) after welding, making 316L elbows ideal for welded piping systems in the most challenging service conditions.
What is 316L Stainless Steel?
316L stainless steel is a low-carbon variant of the 316 grade, belonging to the austenitic stainless steel family. Its key distinguishing feature is the addition of 2-3% molybdenum, which dramatically enhances its resistance to pitting and crevice corrosion — especially in chloride-containing environments such as seawater, brine, and acidic solutions.
Compared to 304 stainless steel, 316L offers significantly better performance in:
- Seawater and marine environments
- Chloride solutions and acidic media
- Sulfuric acid and phosphoric acid service
- High-temperature steam and exhaust applications
With its superior corrosion resistance and enhanced mechanical properties at elevated temperatures, 316L stainless steel is the industry standard for critical applications where failure is not an option.
Key Features & Advantages
- Molybdenum-Enhanced Corrosion Resistance: 2-3% Mo content provides exceptional resistance to pitting, crevice corrosion, and chloride stress corrosion cracking (SCC)
- Low-Carbon for Welding: Carbon ≤ 0.03% prevents carbide precipitation and intergranular corrosion in weld heat-affected zones (HAZ)
- Superior High-Temperature Performance: Retains mechanical strength at temperatures up to 800°C in intermittent service, 550°C in continuous service
- Excellent Bio-Compatibility: Non-toxic, non-reactive — safe for pharmaceutical, medical, and food-contact applications
- Smooth Hygiene Surface: Mirror-polished inner wall prevents bacterial adhesion; ideal for CIP/SIP systems
- Full Range of Configurations: 45°, 90° Short Radius (SR), 90° Long Radius (LR), 135°, and 180° Return bends
- Multiple Connection Types: Butt weld, socket weld, threaded, and flanged ends
- Pressure & Temperature Ratings: Suitable for high-pressure systems up to 1000 PSI (Class 3000) depending on size and schedule
- Global Standards Compliance: Meets international specifications for consistent quality worldwide
Chemical Composition
| Element | Content |
|---|---|
| Chromium (Cr) | 16.0 – 18.0% |
| Nickel (Ni) | 10.0 – 14.0% |
| Molybdenum (Mo) | 2.0 – 3.0% |
| Carbon (C) | ≤ 0.03% (316L) / ≤ 0.08% (316) |
| Manganese (Mn) | ≤ 2.00% |
| Silicon (Si) | ≤ 0.75% |
| Phosphorus (P) | ≤ 0.045% |
| Sulfur (S) | ≤ 0.030% |
| Nitrogen (N) | ≤ 0.10% |
| Iron (Fe) | Balance |
Mechanical Properties
| Property | 316L Annealed Condition |
|---|---|
| Tensile Strength | ≥ 485 MPa |
| Yield Strength (0.2%) | ≥ 170 MPa |
| Elongation | ≥ 40% |
| Hardness | ≤ 95 HRB (Rockwell B) |
| Modulus of Elasticity | 193 GPa |
| Impact Toughness (Charpy V) | ≥ 100 J @ 20°C |
Dimensions & Specifications

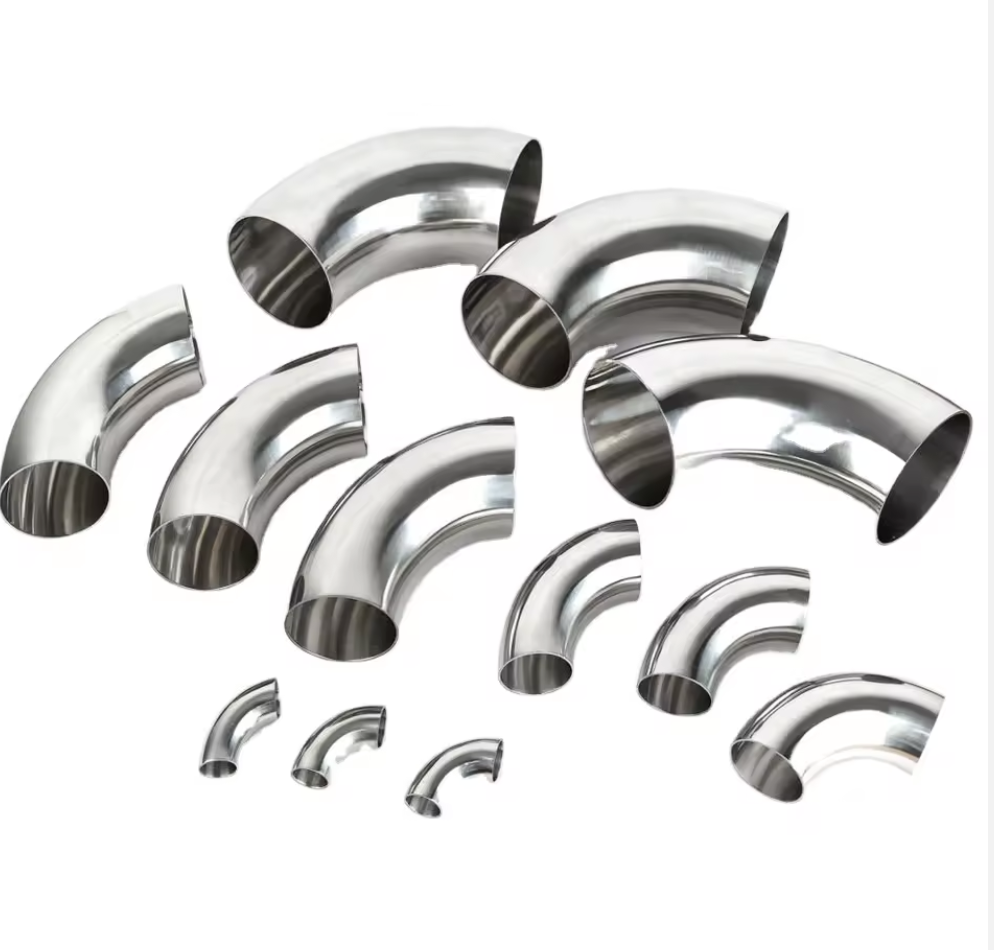

Elbow Types
| Type | Center-to-End (C-to-E) | Application |
|---|---|---|
| 90° Short Radius (SR) | 1.5 × NPS | Tight spaces, low-pressure systems |
| 90° Long Radius (LR) | 1.5 × NPS | Standard use, minimized pressure drop |
| 90° LR 3D / 5D | 3× / 5× NPS | Large diameter, minimal turbulence |
| 45° Elbow | 1.5 × NPS | Gradual directional changes |
| 180° Return Bend | 3 × NPS | U-bend, coil, and return piping |
| Reducing Elbow | Direction + size change | Branch connections |
Size Range
- NPS: 1/8″ – 48″ (DN6 – DN1200)
- Custom sizes available for large-diameter projects
Schedule / Wall Thickness
- SCH 5S, 10S, 20S, 40S, 80S, 160S, XXS
- Per ANSI B36.19 (Stainless Steel) / B36.10 (Carbon Steel)
Connection Types
- Butt Weld (BW): Preferred for high-pressure, high-temperature critical service
- Socket Weld (SW): Ideal for small-diameter, high-pressure instrumentation
- Threaded (NPT/BSPT): Quick installation for low-pressure process lines
- Flanged: Removable connections for easy maintenance and inspection
Compliance Standards
- ASTM A403 / ASME SA403 — Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
- ASTM A774 — Standard for Wrought Austenitic Piping Fittings for General Corrosive Service
- ANSI B16.9 — Factory-Made Wrought Buttwelding Fittings
- ANSI B16.28 — Short Radius Wrought Buttwelding Fittings
- MSS SP-43 — Standard Practice for Stainless Steel
- EN 10253-3 / EN 10253-4 — European butt-weld fittings standards
- JIS B2312 / B2313 — Japanese industrial standards
- ISO 5251 — International stainless steel butt-weld fittings
- DIN 2605 — German elbow standard
Pressure & Temperature Ratings
| Class | Max Pressure @ 38°C | Continuous Temp. Limit |
|---|---|---|
| Class 150 (PN20) | 20 bar | Up to 538°C |
| Class 300 (PN50) | 50 bar | Up to 538°C |
| Class 600 (PN110) | 110 bar | Up to 538°C |
| Class 900 (PN150) | 150 bar | Up to 538°C |
Note: 316L outperforms 304 at elevated temperatures and in chloride environments. For temperatures above 425°C, consider 321 or 347 stabilized grades.
Surface Finishes
| Finish | Ra Value | Application |
|---|---|---|
| Annealed & Pickled | 3.0 – 6.0 μm | Standard industrial use |
| Satin / Brushed | 1.0 – 3.0 μm | Architectural, general process |
| Mirror Polish (MP) | ≤ 0.8 μm | Food, dairy, beverage, biotech |
| Electropolished (EP) | ≤ 0.25 μm | Pharmaceutical, ultra-pure water, semiconductors |
| Sanitary Polished | ≤ 0.5 μm | FDA / 3-A compliant hygienic systems |
Applications
| Industry | Specific Applications |
|---|---|
| Marine & Shipbuilding | Seawater cooling systems, hull piping, desalination plants, offshore platforms |
| Oil & Gas | Offshore drilling, FPSO vessels, refinery process piping, sour gas service |
| Chemical & Petrochemical | Acid transfer, chlor-alkali plants, desulfurization, fertilizer production |
| Pharmaceutical & Biotech | Pure water (WFI) systems, sterile process piping, CIP/SIP systems, API production |
| Food & Beverage | Dairy, brewery, beverage production, edible oil processing, aseptic packaging |
| Medical & Healthcare | Medical device manufacturing, hospital water systems, surgical instrument sterilizers |
| Power Generation | Nuclear secondary cycle, boiler feedwater, turbine lube oil systems |
| Pulp & Paper | Bleach plants, chlorine dioxide service, black liquor handling |
| Water Treatment | Desalination, wastewater, seawater intake/discharge |
| HVAC & Building | Corrosive environment piping, coastal building services |
| Semiconductors | Ultra-high purity (UHP) gas and chemical distribution |
316L vs 304 vs 316 — Which to Choose?
| Property | 304 SS Elbow | 316 SS Elbow | 316L SS Elbow |
|---|---|---|---|
| Molybdenum | None | 2-3% | 2-3% |
| Carbon (max) | 0.08% | 0.08% | 0.03% |
| Pitting Resistance Equivalent (PRE) | ~19 | ~24 | ~24 |
| Seawater Resistance | Poor | Good | Excellent |
| Weldability | Good | Good | Excellent |
| Post-Weld Corrosion Risk | Low | Moderate | Minimal |
| Cost Index | 1.0× (baseline) | 1.2-1.3× | 1.25-1.35× |
| Best For | General purpose, food, architecture | Elevated temp, moderate chloride | Marine, chloride, heavy welding |
Summary: Choose 316L stainless steel elbows whenever your application involves seawater, chlorides, prolonged welding, or any environment where maximum corrosion resistance is critical. The low-carbon chemistry eliminates sensitization risks during fabrication and in-service welding repairs.
Quality Assurance
✓ Mill Test Certificate (MTC) — Full chemical & mechanical test reports per EN 10204 Type 3.1
✓ Positive Material Identification (PMI) — Alloy verification using XRF or spectroscopy
✓ Hydrostatic Pressure Test — 100% leak testing at 1.5× design pressure
✓ Dimensional Inspection — Per ANSI B16.9 / EN 10253 tolerances
✓ Surface Roughness Testing — For hygienic and sanitary applications
✓ Intergranular Corrosion Test (Strauss Test ASTM A262 Practice E) — Ensures weld zone integrity
✓ Third-Party Inspection — SGS, BV, TÜV, DNV, LR available upon request
✓ Full Traceability — Heat number, batch code, and manufacturing records on every piece
✓ ISO 9001 / PED 2014/68/EU — Quality management system certification
Packaging & Logistics

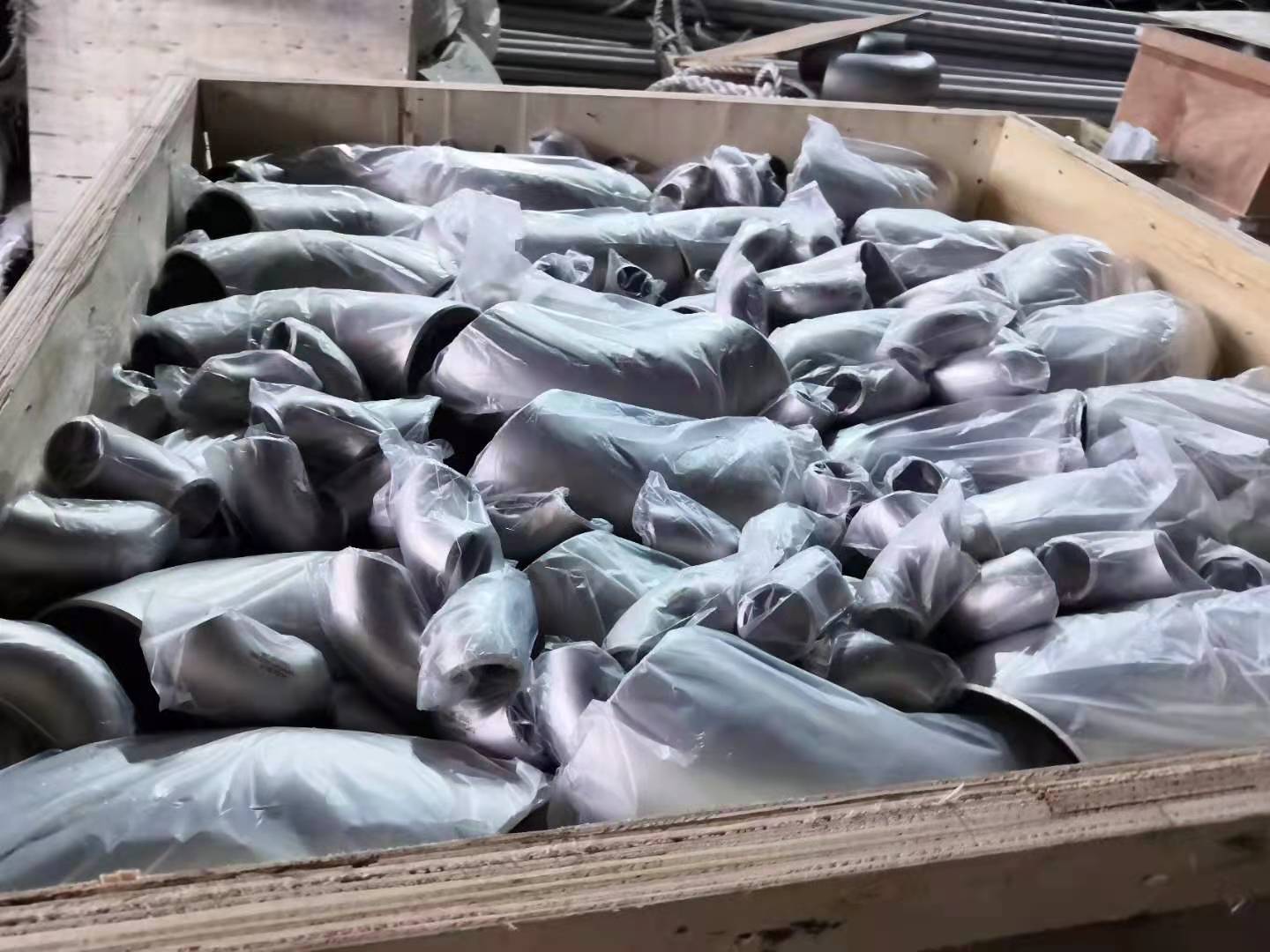

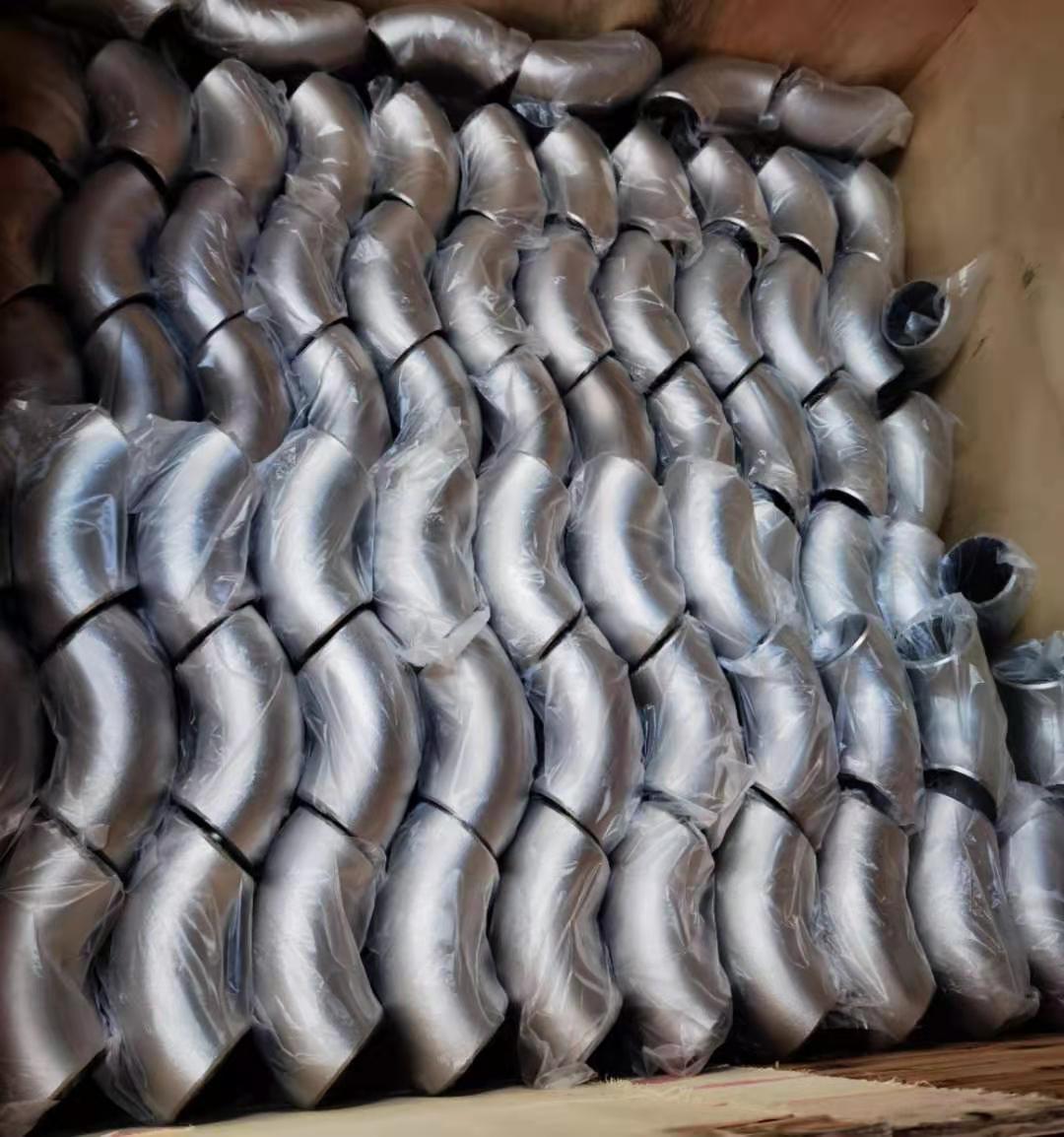

- Individual Protection: Plastic end caps on both ends + foam wrapping
- Inner Packaging: Bubble wrap or corrugated cardboard
- Outer Packaging: Strong wooden crates or pallets
- Anti-Corrosion Treatment: VCI (Vapor Corrosion Inhibitor) film for sea freight
- Marking: Item description, size, schedule, heat number, lot code
- Documents: Commercial invoice, packing list, certificate of origin, MTC
- Stock Items: 5-10 business days
- Custom Orders: 15-35 business days depending on quantity and specifications
RFQ / Inquiry Form
Please provide the following details for an accurate quotation:
- Product: 316 / 316L Stainless Steel Elbow
- Size: NPS (e.g., 2″, 4″, 6″, 12″) or DN
- Type: 90° LR / 90° SR / 45° / 180° Return / Reducing
- Connection: Butt Weld / Socket Weld / Threaded / Flanged
- Schedule: SCH 10S / SCH 40S / SCH 80S / SCH 160 / XXS
- Quantity: Pieces or metric tons
- Standard: ASTM A403 / ANSI B16.9 / EN / JIS
- Surface Finish: Pickled / Satin / Mirror Polish / Electropolished
- Pressure Class: Class 150 / 300 / 600 / 900 / 1500
- Certification: MTC 3.1 / PMI / Third-party inspection
