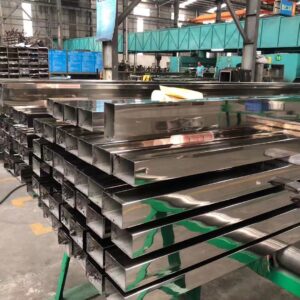

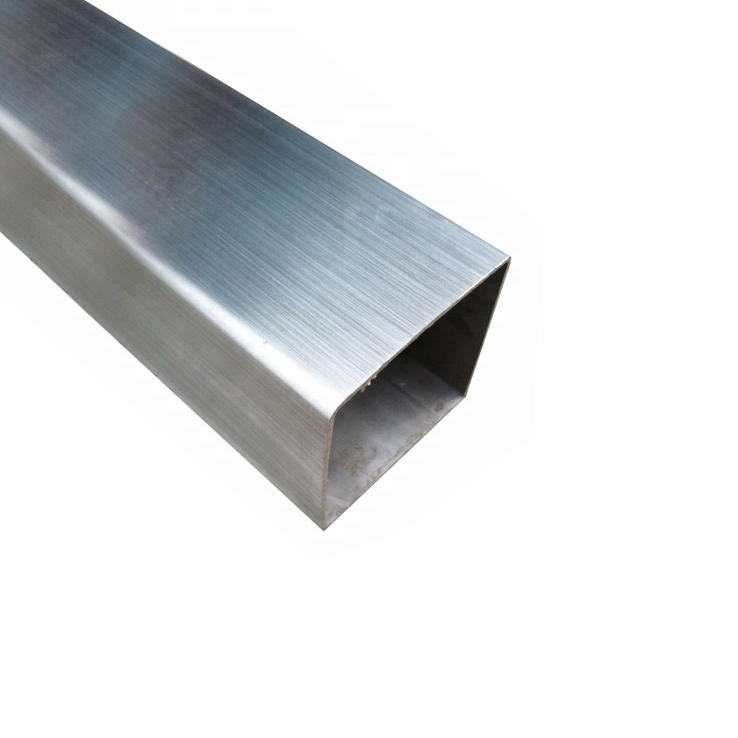

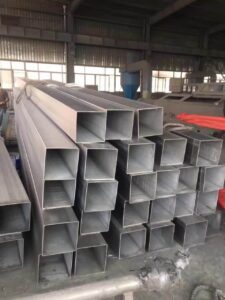

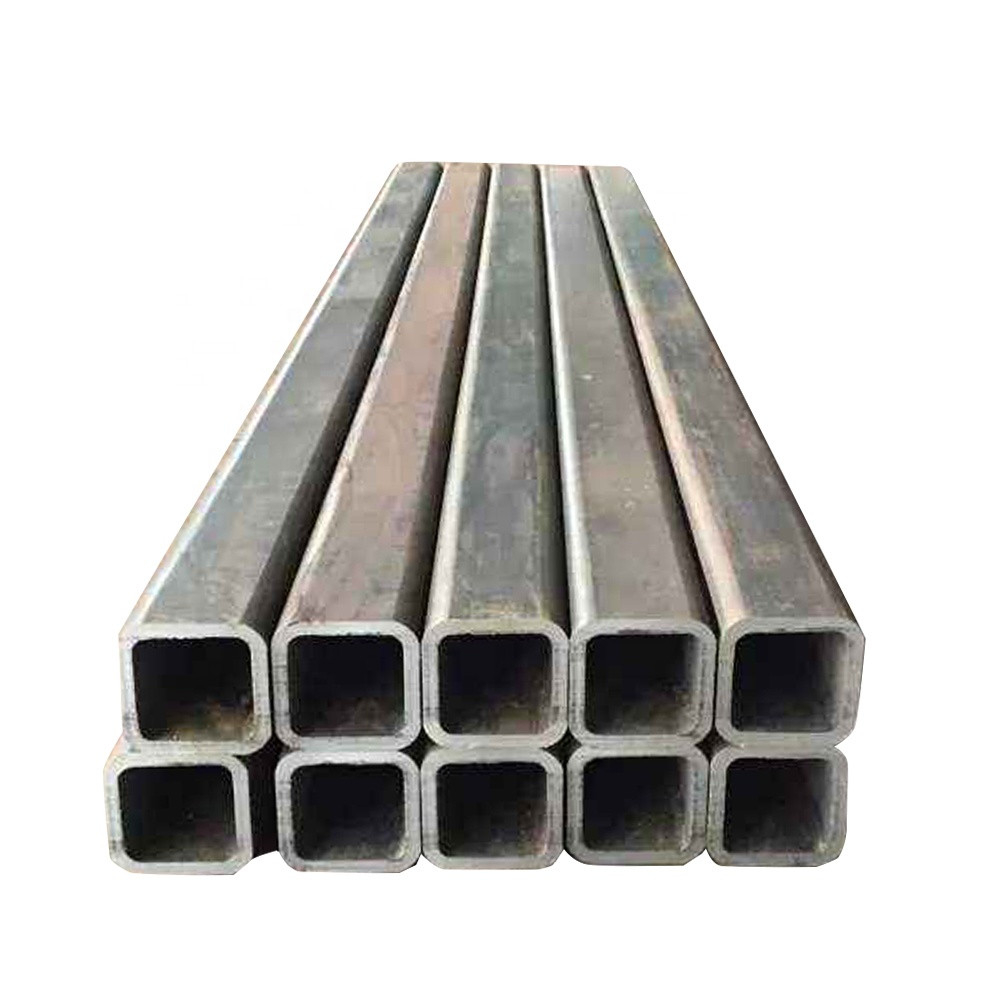

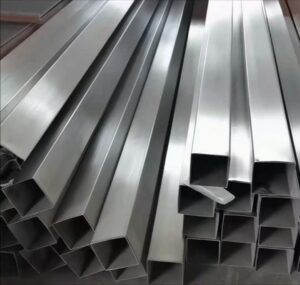

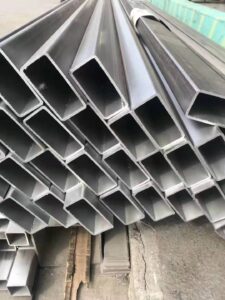

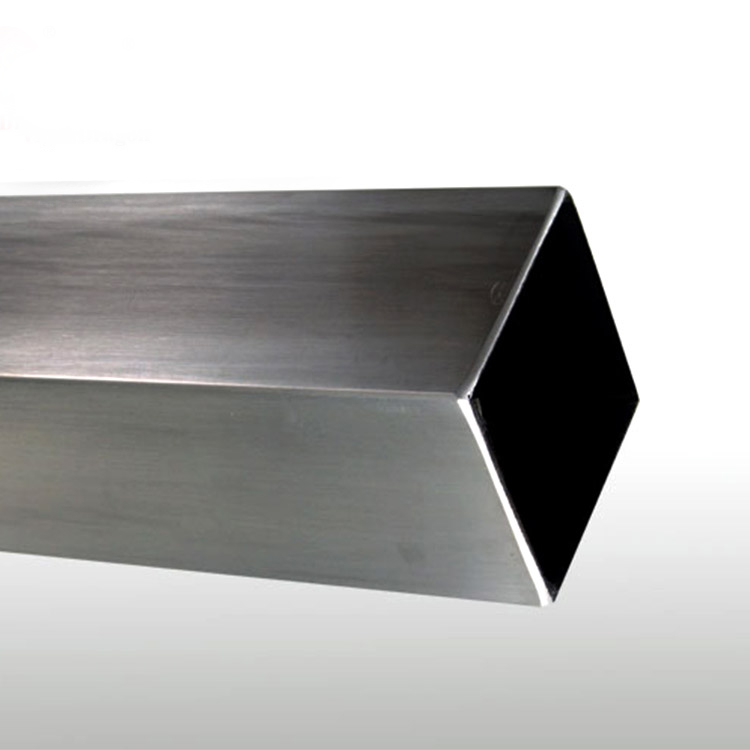

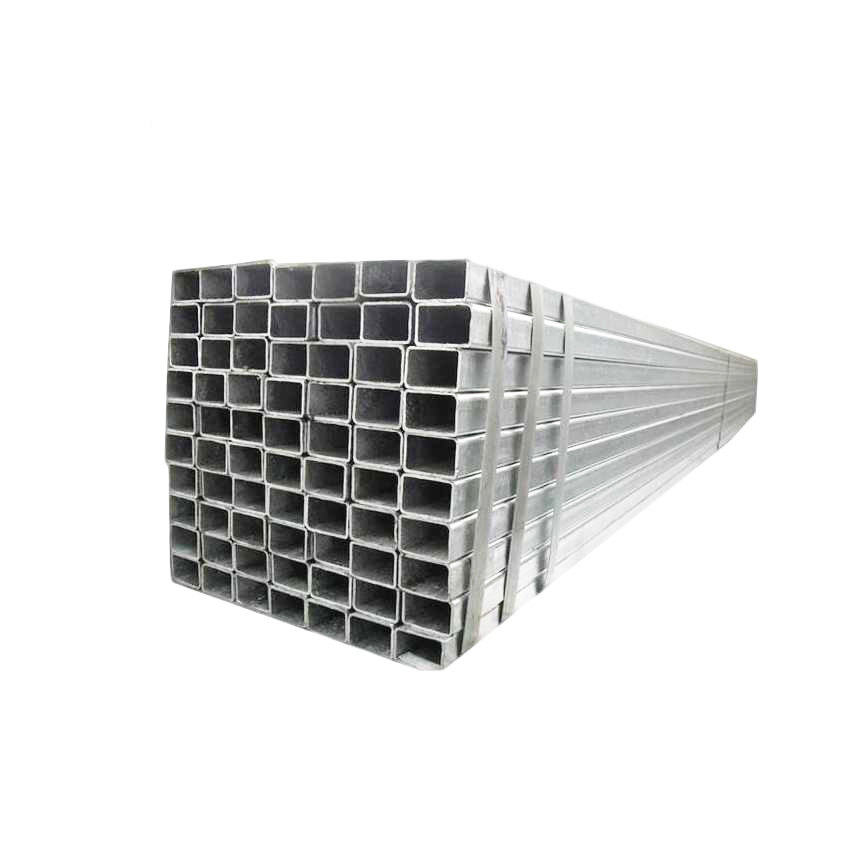

| Product Name | Stainless Steel 304 316L SHS Square Rectangular Pipe |
| Related Name | Ss Square Hollow Section Tube, SUS304, SUS316L Square Tubing, Anti Corrosion Structural Steel, AISI 304 AISI 316L Square Tube |
| Standard | ASTM A554, ASTM A312, ASTM A269 |
| Material | 304 316L |
| Thickness | 0.25-10mm |
| Size of Square Pipe | 10x10mm to 100x100mm |
| Size of Rectangular Pipe | 6x10mm to 42x114mm |
| Surface | BA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, SB, Embossed |
| Packing | plastic bag,carton,wooden case |
The Chemical Composition and Mechanical Property
| The Chemical Composition and Mechanical Property of Stainless Steel 304 316L | |||||||||
| Chemical Composition | Grade of Material | C | Si | Mn | P | S | Ni | Cr | Mo |
| AISI 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00~11.00 | 18.00~20.00 | \ | |
| AISI 316L | ≤0.035 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 | |
| Mechanical Property | Grade of Material | Elongation (%) | Tensile Strengh (Rm) N/m m³ | Yield Strength (Rp) 0.2% N/m m³ | Hardness (HV) | ||||
| AISI 304 | ≥35 | ≥520 | ≥210 | ≤200 | |||||
| AISI 316L | ≥35 | ≥480 | ≥180 | ≤200 | |||||
The Common Size Chart of Stainless Steel Square and Rectangular Pipe
The following sheets show the hot selling sizes of Jingtong square pipe and rectangular pipe.
| The Section Size of Square Pipe | |||||||
| 10x10mm | 12x12mm | 15x15mm | 16x16mm | 17x17mm | 18x18mm | 19x19mm | 20x20mm |
| 21x21mm | 22x22mm | 24x24mm | 25x25mm | 25.4×25.4mm | 28x28mm | 28.6×28.6mm | 30x30mm |
| 32x32mm | 35x35mm | 37x37mm | 38x38mm | 40x40mm | 45x45mm | 48x48mm | 50x50mm |
| 80x80mm | 100x100mm | ||||||
| Wall Thickness:0.25-4.0mm | |||||||
| The Section Size of Rectangular Pipe | |||||||
| 6x10mm | 8x16mm | 8x18mm | 9x19mm | 10x20mm | 10x22mm | 11×21.5mm | 11.6×17.8mm |
| 12x14mm | 12x34mm | 12.3×25.4mm | 13x23mm | 14x20mm | 14x24mm | 14x72mm | 15x30mm |
| 15x35mm | 15x88mm | 16x26mm | 17.5×15.5mm | 18x35mm | 17x37mm | 19x38mm | 20x30mm |
| 20x40mm | 22x25mm | 22x26mm | 25x38mm | 25x30mm | 25x40mm | 25x50mm | 27x40mm |
| 30x40mm | 30x50mm | 30x60mm | 30x70mm | 40x60mm | 45x75mm | 40x80mm | 50x100mm |
| 42x114mm | |||||||
| Wall Thickness:0.25-4.0mm | |||||||
Hot Tags: stainless steel 304 316l shs square rectangular pipe, China stainless steel 304 316l shs square rectangular pipe manufacturers, suppliers, factory.
